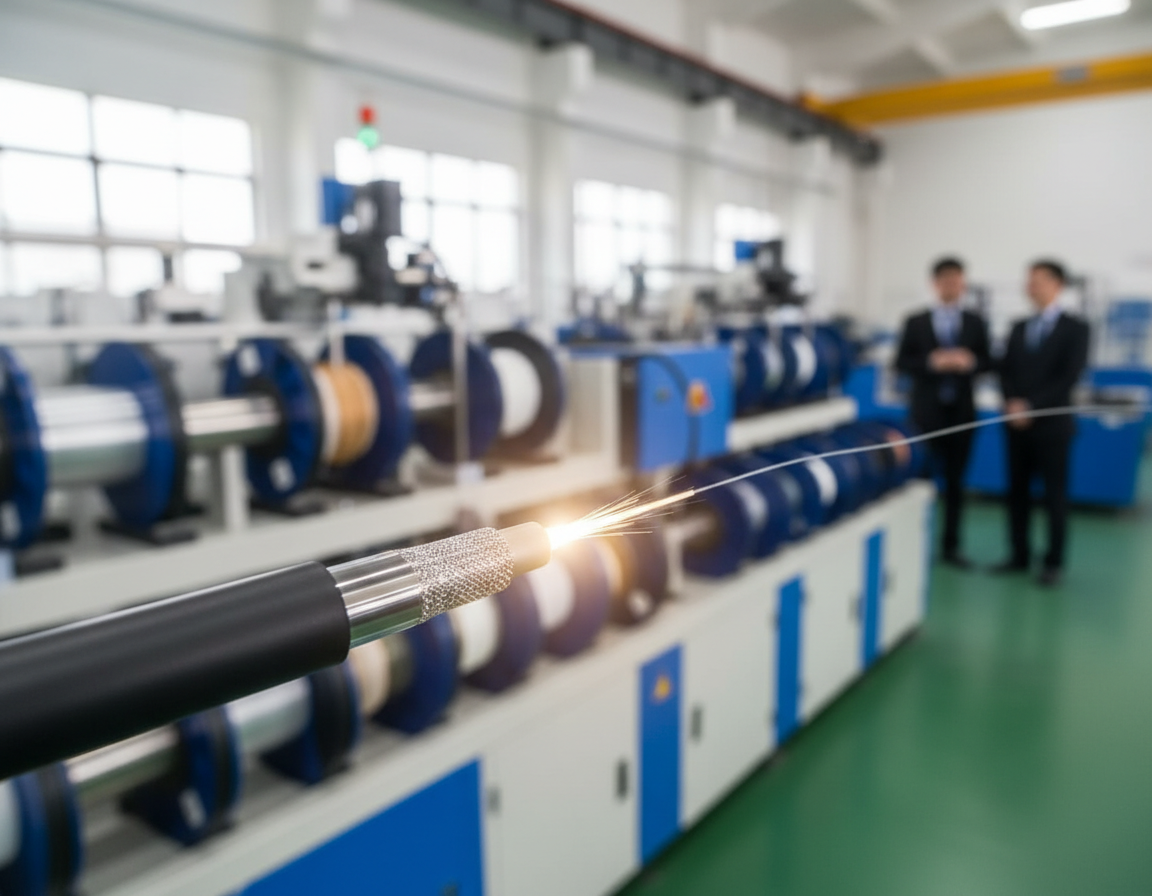

The FTTH Cable Production line is an integrated set of modules that transforms fiber optic glass into completed drop and distribution cable products with repeatable quality.
Compact Fiber Unit
This introduction guides plant managers, process engineers, sourcing teams, and students in the United States who assess how industrial manufacturing equipment converts fine fiber into durable cables for service and communication networks.
Fundamentally, the full-chain objective is straightforward: shield the fiber, keep attenuation low, provide pull strength for installation, and ship an output that holds up to indoor and outdoor conditions.
Expert equipment means reliable tension regulation, synchronized drives, consistent process operating windows, and clear documentation for acceptance testing. This article helps match the right line configuration, materials, and testing plan to the intended product instead of buying machines first and correcting later.
You’ll map stages such as fiber preparation, buffering and coating, fiber organization and stranding, strength-member integration, sheathing (outer jacket extrusion), optional armoring, and final validation and packaging.
Key takeaways: A well-specified line cuts defects and supports predictable delivery. Align the process before buying machines to reduce time and cost.
How A Fiber Optic Cable Production Line Operates Today
Where last-mile drop and distribution demands meet factory practice.
Modern fiber manufacturing lines stitch delicate glass into finished products used in U.S. broadband deployments. Last-mile drop cable and FTTH drop demand drives high volumes, so manufacturers emphasize consistent handling and standards-based output.
Core Modules, Material Flow
Material moves through a clear sequence: pay-off (unwinding) → guiding and tensioning → secondary coating and coloring → organization/SZ stranding → strength member feed → jacketing (sheathing) → cooling/curing → take-up plus testing.
Modules And Outcomes
Stable fiber handling lowers attenuation and preserves data and communication integrity. Consistent jacketing helps installation and connector preparation. Inline monitoring flags loss events before reels leave the line.
- Indoor vs. outdoor applications: different buffering and jacket compounds.
- Armored variants add steel tape or wire for rodent and crush resistance.
- Drop designs favor tight-buffered fibers and simplified connector prep.
Buyers should view lines as modular. Factories can add armoring or remove steps to match the cable design. Throughput is limited by curing and dimensional control, not only motor speed.
Define Product And Data Standards Before Buying Equipment
Start with a clear product map that defines the cable type, fiber/core count, service environment, and user scenarios. That early definition narrows the modules your line must include, from tight-buffer units to SZ stranding and jacket extrusion equipment.
Select Standards And Measurable Targets
Choose fiber standards such as ITU-T G.652D class or bend-insensitive G.657A1/A2 based on required bend performance and routing. Define loss budgets, tensile targets, crush and bend limits, and environmental durability before choosing a supplier.
- Map the exact product type and core/fiber count to define required modules and control needs.
- Specify attenuation (loss) budgets and mechanical strength targets to guide material choice.
- Define required materials (buffer polymers, jacket compounds) and confirm U.S. supplier availability.
Data Standards, Traceability & Validation
Turn targets into factory-ready information: recorded process variables, lot traceability, and customer-required acceptance test reports. Plan R&D pilot runs to validate settings and shorten scale-up time.
Fiber Draw Tower
| Goal | Factory Implication | Common Action |
|---|---|---|
| Low attenuation | Tension and alignment control | In-line attenuation checks |
| Strong mechanical performance | Strength-element selection | Aramid/metal integration |
| Improved bend resistance | Selecting the fiber type | Adopt G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding, And Coating Essentials
Strong optical performance begins in the glass, where core purity and cladding design set the ceiling for signal loss.
Core and cladding make up the core layer structure: an ultra-pure silica core carries the light while a lower-index cladding keeps it confined. This geometry underpins low-loss transmission and stable optical behavior once cabled.
From Preform To Drawn Fiber
Manufacturing starts with preform laydown and consolidation. Moisture removal via a high-temperature furnace cuts defects that drive loss upward.
The draw step pulls glass into a micron-scale strand. Geometry control at this stage links directly to steady attenuation and predictable transmission performance. A single blank can yield roughly 5 km of fiber, so stability saves time and cost.
Primary Coating, Color Coding
The primary coating protects against scratches and handling damage; it is not the primary strength element. Color ID makes splicing, troubleshooting, and downstream fiber management easier.
- Preform consolidation: remove contaminants and moisture.
- Draw: manage diameter and tension for low attenuation.
- Coating and color: protect and identify each fiber.
| Layer Type | Role | Buyer Verification |
|---|---|---|
| Fiber core | Carry light with minimal attenuation | Specify purity and loss specs |
| Cladding layer | Contain light, manage modal behavior | Confirm index profile and geometry |
| Primary coating layer | Scratch protection; color ID | Verify adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A practical line setup walks each fiber from pay-off through buffering, stranding, and outer jacket to a finished reel.
Secondary coating and fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and one-to-twelve channel color coding for traceability. Consistent UV cure rates and steady web tension reduce mix-ups and rework.
Buffering & Materials
Tight buffering (600–900 µm) protects handling and simplifies connector preparation. Choosing Hytrel, PVC, or LSZH changes flexibility, temperature range, and flame/smoke behavior.
SZ Stranding And Organization
SZ stranding uses alternating lay to balance geometry and give cable flexibility. Servo control (up to 24 fibers) keeps lay pitch consistent and lowers loss risk.
Strength Members & Jacketing
Aramid yarn is the common tensile element; it provides pull strength without stressing fibers during installation.
Outer jacket extrusion with PVC, PE, or LSZH follows. Speeds often run 60–90 m/min and demand tight OD and concentricity control.
Armoring And Control Points
When crush or rodent resistance is required, add steel tape or wire armor and control tension. Operators monitor tension, cure state, concentricity, OD, and cooling to keep quality stable.
| Step | Key Control Point | Typical Spec |
|---|---|---|
| Secondary coating process | UV cure & tension | ≈250 µm, high cure consistency |
| Tight buffer | Choice of material | 600–900 µm (Hytrel, PVC, LSZH) |
| Sheathing | OD/concentricity | 60–90 m/min typical |
Optimize Production Speed And Process Control With Modern Automation
As factories chase 24/7 output, synchronized controls and tension systems form the backbone of reliable manufacturing.
PLC, HMI, Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC/HMI platforms to synchronize modules, manage recipes, and log process data. Closed-loop tension control safeguards fiber during start/stop events and speed changes.
Fiber Secondary Coating Line
Match Speed To Curing & Dimensional Control
Line speed is often limited where curing, cooling, or extrusion dimensional control falls behind. UV cure completeness, water-trough stability, and chiller capacity define the real limit.
Layout, Changeover, And Procurement
Factory layout affects uptime: correct pay-off/take-up placement and protected fiber paths reduce damage and speed changeovers.
- Design quick-change tooling and documented setup procedures to reduce changeover time.
- Specify industrial power (380 V AC ±10%) and a typical ≤55 kW load when ordering equipment.
- Require remote diagnostics, parts availability, and responsive service from the equipment company.
| Priority | Operational Benefit | Typical Goal |
|---|---|---|
| System synchronization | Less scrap, more repeatable runs | Siemens PLC/HMI platform |
| Closed-loop tension | Protects fiber; keeps loss stable | Closed-loop with high accuracy |
| Layout & changeover | Reduced downtime | Quick-change tooling, staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Strong testing and clear QC turn raw fiber into reliable, field-ready cable reels.
Begin with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels exit the line.
Optical Checks & Signal Integrity
Attenuation testing is the primary guardrail against performance complaints. Higher loss readings point to handling damage, microbends, or contamination.
Return loss checks target reflections that affect sensitive links and tight network margins.
Mechanical And Environmental Validation
- Tensile pull tests verify strength members and installation safety.
- Crush and bend tests simulate real-world installation stresses.
- Temperature cycling, moisture soak, and vibration tests reduce risk for outdoor and aerial routes.
| Validation Test | Purpose | Typical Decision |
|---|---|---|
| Loss test | Measure loss per km | Pass/fail versus spec |
| Mechanical tests | Validate pull, crush, bend | Installation suitability rating |
| Environmental validation | Simulate real field conditions | Durability confirmation |
Traceability links raw material lots, in-line data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Final Thoughts
A clear manufacturing plan ties product targets to the exact line modules and control limits needed for reliable output. Specify the FTTH product, service environment, and measurable specs before selecting equipment or finalizing layout.
Fiber optic fundamentals—core, cladding, and coating—set the optical baseline. Careful handling upstream preserves signal integrity and keeps finished quality within acceptance limits.
Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to sustain speed, cut scrap, and make delivery predictable across U.S. markets.
Discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: translate these points into a purchasing checklist (spec targets, utilities, layout, acceptance tests) before you request quotes or trials.
